Planet HS Drop Seal

Mortised

A mortised automatic drop seal designed for timber, metal, and PVC doors. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering and automatic compensation for sloping floors. Suitable for fire and smoke-shielding doors, with a seal height of up to 22mm.

System specification

Property

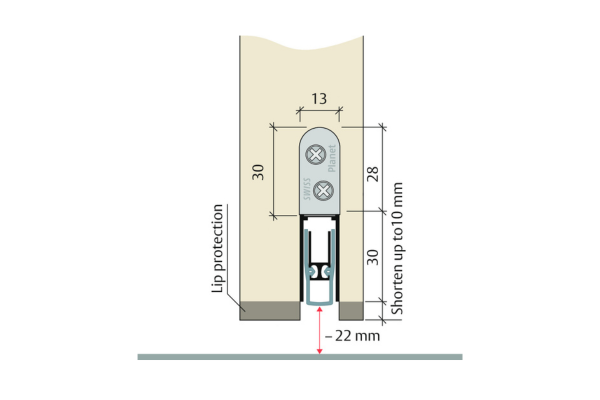

Profile size 13 x 30 mm
Profile material Aluminium carrier with silicone gasket
Max. drop height 22 mm
Sound insulation up to 48dB
Can be shortened max. 125 mm (335 mm only 115 mm)

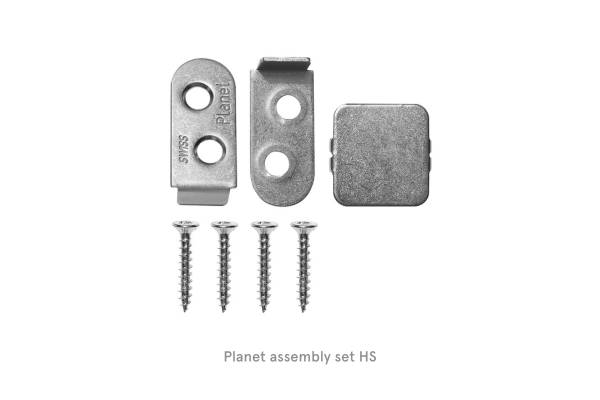

Fastening with stainless steel mounting brackets and screws on the side
