Planet X3 drop seal
Mortised

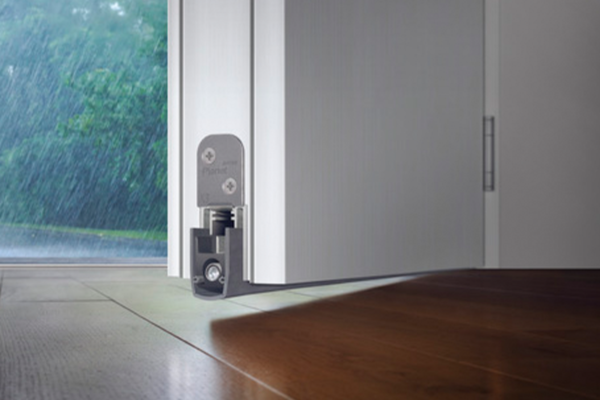

A mortised automatic drop seal designed for exterior doors made of timber, metal, or PVC. Engineered for high-performance weather protection, it is driving rain-proof (7A/9A, ift certified) without requiring a drainage channel. Featuring a high-efficiency mechanism with hinge-side triggering, it provides three sealing movements—downwards, to the left, and to the right—each individually adjustable. Drop height adjustable between 5–12mm, with a side lift of 2–6mm. Durable silicone lip for reliable sealing.
System specification
| Property | |
|---|---|
| Max. drop height | 5 – 12mm |
| Profile size | 22 x 30mm |
| Sound absorption value | up to 52 dB (at ground air 7mm) |
| Frame protector plate | Planet corner plate set X3 recommended (optional) |
| Fastening | with stainless steel mounting brackets and screws on the side |
| Standard lengths | 835mm, 960mm, 1085mm, 1210mm, 1335mm, 1460mm |
| Non-standard lengths | Sizes up to 6m are available to |
| Can be shortened | max. 125 mm |
| Profile material | Aluminium carrier with silicone gasket |
| Special features | Driving rain proof 7A/9A, 300 Pa, classification according to DIN EN 12208 Test method according to DIN EN 1027 |
